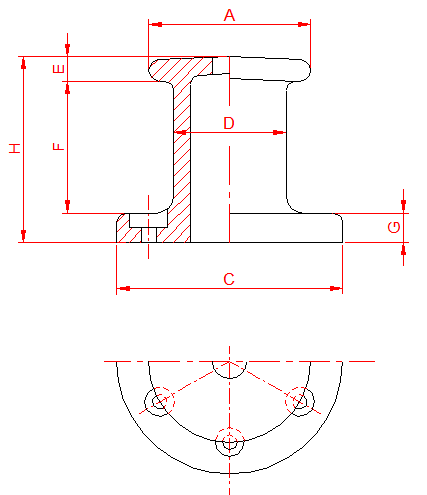

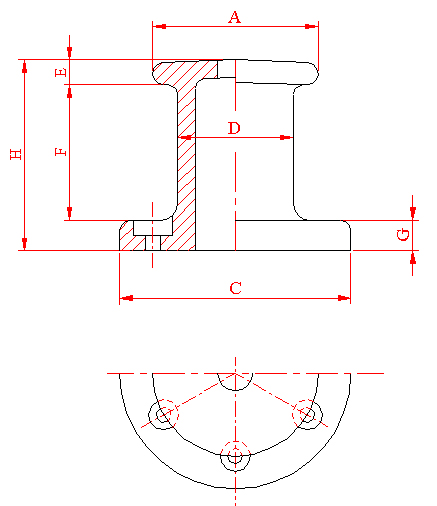

Pull Tonnage |
Type |
A |
C |
D |
E |
F |
G |
H |
Bolt No. |
|
3-5 |
SBB1-3 |
150 |
200 |
100 |
25 |
140 |
35 |
200 |
4 |
|
5-10 |
SBB1-5 |
200 |
270 |
125 |
35 |
150 |
35 |
220 |
4 |
|
10-20 |
SBB1-10 |
240 |
320 |
160 |
40 |
200 |
40 |
280 |
5 |
|
20-30 |
SBB1-20 |
330 |
460 |
230 |
50 |
270 |
60 |
380 |
6 |
|
30-50 |
SBB1-30 |
330 |
460 |
230 |
50 |
270 |
60 |
380 |
6 |
|
50-75 |
SBB1-50 |
500 |
700 |
340 |
80 |
340 |
80 |
500 |
8 |
|
75-100 |
SBB1-75 |
500 |
700 |
340 |
90 |
360 |
90 |
540 |
8 |
|
100-125 |
SBB1-100 |
610 |
900 |
450 |
100 |
450 |
100 |
650 |
8 |
|
125-150 |
SBB1-125 |
610 |
900 |
450 |
100 |
450 |
100 |
650 |
8 |
|
150-200 |
SBB1-150 |
740 |
1000 |
500 |
130 |
500 |
120 |
750 |
8 |
|
|
|
