TCS Series Turn Cell / Roller Fenders

  Sliding Axis Design Improves Performance Over TC Series Non Sliding Turn Cell / Wheel Fenders ( See TC Series Below )

  For Locks, Dry Docks, Breakwater, Bridge Pier and Canals

  Rotating Cell To Protect Quay From Moving Ship Hull

  Single (TCS1) / Double (TCS2) / Triple Cell (TCS3) Configuration

  Fender Cell Height 400-1000mm / Fender Cell Outer Diameter 1200-3000mm





TCS Series Fender Specifications
Performance Information
At Max Fender Deflection
Model

Max Deflection
(mm)

Reaction Force
(T)

Energy Absorption
(T-M)

TCS1-1200
431
25.3
4.89
TCS1-1500
541 39.6 9.55
TCS1-1800
650 57.0 16.5
TCS1-2100
762 77.6 26.2
TCS1-2400
851 101 39.1
TCS1-2700
964 128 55.7
TCS1-3000
1076 158 76.4
TCS2-1200
431 50.6 9.78
TCS2-1500
541 79.2 19.1
TCS2-1800
650 114 33.0
TCS2-2100
762 155 52.4
TCS2-2400
851 202 78.2
TCS2-2700
964 256 111
TCS2-3000
1076 316 153
TCS3-1200
431 75.9 14.7
TCS3-1500
541 119 28.7
TCS3-1800
650 171 49.5
TCS3-2100
762 233 78.6
TCS3-2400
851 303 117
TCS3-2700
964 384 167
TCS3-3000
1076 474 229

Performance data listed has +/- 10% tolerance.


TCS Series Dimension Table

Model
Dimensions
A
B
C
L-TCS1
L-TCS2
L-TCS3
TCS1/TCS2/TCS3 1200 1200 400 1600 900 1800 2700
TCS1/TCS2/TCS3 1500 1500 500 2000 1125 2250 3375
TCS1/TCS2/TCS3 1800 1800 600 2400 1350 2700 4050
TCS1/TCS2/TCS3 2100 2100 700 2800 1575 3150 4725
TCS1/TCS2/TCS3 2400 2400 800 3200 1800 3600 5400
TCS1/TCS2/TCS3 2700 2700 900 3600 2025 4050 6075
TCS1/TCS2/TCS3 3000 3000 1000 4000 2250 4500 6750

All dimensions in mm.
Models listed are standard models. We also customize TCS systems to requirements.



TC Series Turn Cell / Roller Fenders



 For Locks, Dry Docks, Breakwater, Bridge Pier and Canals

 Rotating Cell To Protect Quay From Moving Ship Hull

 Single (TC1) / Double (TC2) / Triple Cell (TC3) Configuration

 Fender Cell Height 200-800mm / Fender Cell Outer  Diameter 600-2400mm

TC Series Fender Specifications
Performance Information
At Max Fender Deflection
Model

Max Deflection

(mm)

Reaction Force

(T)

Energy Absorption

(T-M)

TC1-600
125
7
0.25
TC1-750
157
11
0.48
TC1-900
184
15
0.96
TC1-1200
260
27
1.96
TC1-1500
325
43
3.84
TC1-1800
390
62
6.63
TC1-2100
455
84
10.7
TC1-2400
520
110
15.7
TC2-600
125
14
0.5
TC2-750
157
21
1.0
TC2-900
184
31
1.7
TC2-1200
260
55
3.9
TC2-1500
325
86
7.7
TC2-1800
390
124
13.3
TC2-2100
455
169
21.0
TC2-2400
520
220
32.0
TC3-600
125
21
0.7
TC3-750
157
32
1.4
TC3-900
184
46
2.5
TC3-1200
260
82
6.0
TC3-1500
325
128
11.0
TC3-1800
390
185
20.0
TC3-2100
455
252
32.0
TC3-2400
520
329
47.0

Performance data listed has +/- 10% tolerance.

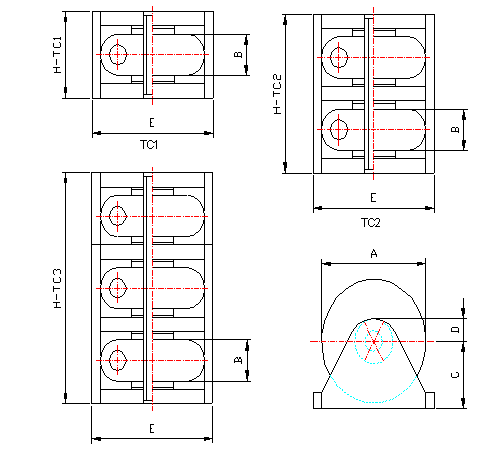

TC Series Dimension Table







Model
Dimensions
A
B
C
D
E
H-TC1
H-TC2
H-TC3
TC1/TC2/TC3 600
600
200
320
110
695
420
770
1120
TC1/TC2/TC3 750
750
250
400
140
870
510
935
1360
TC1/TC2/TC3 900
900
300
480
165
1040
610
1120
1630
TC1/TC2/TC3 1200
1200
400
640
220
1380
820
1500
2180
TC1/TC2/TC3 1500
1500
500
800
275
1740
1010
1850
2690
TC1/TC2/TC3 1800
1800
600
960
330
2080
1210
2215
3220
TC1/TC2/TC3 2100
2100
700
1155
385
2440
1410
2590
3770
TC1/TC2/TC3 2400
2400
800
1280
440
2770
1610
2950
4290

All dimensions in mm.

Models listed are standard models. We also customize TC systems to requirements.
