SC
Series Fender Specifications |
|
|
|
|
|
At Rated Fender Deflection of 52.5% |
| Model |
Ultra High Formula |
Super High Formula |
High Formula |
Standard Formula |
Low Formula |
| Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
| T |
T - M |
T |
T - M |
T |
T - M |
T |
T - M |
T |
T - M |
|
SC400 |
11.3 |
2.0 |
9.8 |
1.7 |
8.5 |
1.5 |
6.5 |
1.2 |
5.3 |
0.9 |
|
SC500 |
18.6 |
4.1 |
16.6 |
3.7 |
14.5 |
3.1 |
11.1 |
2.4 |
10.1 |
1.9 |
|
SC630 |
29.6 |
8.2 |
26.4 |
7.4 |
22.9 |
6.3 |
17.6 |
4.8 |
14.1 |
3.9 |
|
SC800 |
47.4 |
16.7 |
42.1 |
14.9 |
36.3 |
12.7 |
28.1 |
9.8 |
21.6 |
7.7 |
|
SC1000 |
75.3 |
33.1 |
66.9 |
29.3 |
57.9 |
25.5 |
44.5 |
19.5 |
35.7 |
15.6 |
|
SC1150 |
99.5 |
50.3 |
88.3 |
44.6 |
76.6 |
38.7 |
59.0 |
29.7 |
47.2 |
23.8 |
|
SC1250 |
117.7 |
64.5 |
104.3 |
57.3 |
90.5 |
49.6 |
69.6 |
38.2 |
55.8 |
30.6 |
|
SC1450 |
158.3 |
100.7 |
140.5 |
89.4 |
121.8 |
77.5 |
93.7 |
59.7 |
75.0 |
47.8 |
|
SC1600 |
192.7 |
135.3 |
171.1 |
120.1 |
148.3 |
104.1 |
114.0 |
80.1 |
91.3 |
64.1 |
|
SC1700 |
217.5 |
162.3 |
193.1 |
144.0 |
167.4 |
124.9 |
128.8 |
96.0 |
103.0 |
76.8 |
|
SC2000 |
300.2 |
264.4 |
267.3 |
234.6 |
231.7 |
203.3 |
178.2 |
156.4 |
142.7 |
125.1 |
|
SC2250 |
424.0 |
417.8 |
375.5 |
370.1 |
325.4 |
321.3 |
250.5 |
247.2 |
212.8 |
210.1 |
|
SC2500 |
522.3 |
573.1 |
463.6 |
508.6 |
401.8 |
440.9 |
309.0 |
339.1 |
262.7 |
288.2 |
|
SC3000 |
|
|
|
|
580.4 |
760.8 |
440.2 |
579.2 |
375.3 |
499.7 |
 |
Performance data listed above @ 52.5% rated fender deflection. |
|
Five standard formulas were listed. we do offer higher performance formula and customize fender performance according to requirements. Please inquire with your special requirements. |
|
Performance data listed has +/- 10% tolerance. |
|
| Performance Information |
|
At Rated Fender Deflection of 55% |
| Model |
Super high Formula |
Super high Formula |
High Formula |
Standard Formula |
Low Formula |
|
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
|
T |
T - M |
T |
T - M |
T |
T - M |
T |
T - M |
T |
T - M |
|
SC400 |
12.8 |
2.1 |
11.5 |
1.9 |
9.9 |
1.6 |
7.7 |
1.3 |
6.1 |
1.0 |
|
SC500 |
21.5 |
4.4 |
19.1 |
3.9 |
16.4 |
3.4 |
12.0 |
2.6 |
10.2 |
2.0 |
|
SC630 |
31.6 |
8.7 |
28.0 |
7.6 |
24.2 |
6.7 |
18.6 |
5.1 |
15.0 |
4.1 |
|
SC800 |
50.4 |
17.6 |
44.6 |
15.6 |
38.6 |
13.5 |
29.8 |
10.4 |
23.0 |
8.0 |
|
SC1000 |
80.0 |
35.0 |
71.1 |
31.0 |
61.6 |
27.0 |
47.3 |
20.7 |
38.0 |
16.6 |
|
SC1150 |
105.9 |
53.2 |
93.9 |
47.2 |
81.5 |
41.0 |
62.7 |
31.5 |
50.2 |
25.3 |
|
SC1250 |
125.0 |
68.3 |
111.0 |
60.6 |
96.2 |
52.7 |
74.0 |
40.4 |
59.3 |
32.3 |
|
SC1450 |
168.3 |
106.6 |
149.4 |
94.7 |
129.5 |
82.0 |
99.6 |
63.1 |
79.7 |
50.6 |
|
SC1600 |
204.8 |
143.4 |
181.8 |
127.2 |
157.6 |
110.2 |
121.4 |
84.9 |
97.0 |
67.9 |
|
SC1700 |
231.3 |
172.0 |
205.4 |
152.5 |
177.9 |
132.2 |
137.0 |
101.8 |
109.5 |
81.4 |
|
SC2000 |
320.0 |
279.8 |
284.0 |
248.4 |
246.3 |
215.4 |
189.4 |
165.6 |
151.6 |
132.6 |
|
SC2250 |
449.6 |
442.3 |
399.1 |
392.6 |
346.0 |
340.3 |
266.1 |
261.7 |
226.2 |
222.5 |
|
SC2500 |
555.3 |
606.8 |
492.8 |
538.6 |
426.8 |
467.0 |
328.6 |
359.1 |
279.3 |
305.1 |
|
SC3000 |
|
|
|
|
675.5 |
767.4 |
520.4 |
615.1 |
430.4 |
529.9 |
|
|
Performance data listed above @ 55% rated fender deflection. |
|
Five standard formulas were listed. we do offer higher performance formula and customize fender performance according to requirements. Please inquire with your special requirements. |
|
Performance data listed has +/- 10% tolerance. |
|
| |
SC
Series Fender Specifications |
|
|
|

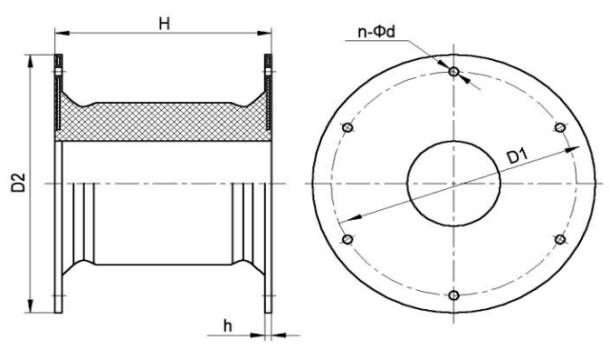

SC Dimension Table
|
|
|
Model |
Dimensions |
|
H |
D1 |
D2 |
h |
n x Ø
Bolt Hole Size |
d
Bolt Size |
|
SC400 |
400 |
550 |
650 |
25 |
4 x Ø30 |
M22 |
|
SC500 |
500 |
550 |
650 |
25 |
4 x Ø32 |
M24 |
|
SC630 |
630 |
700 |
840 |
30 |
4 x Ø39 |
M27 |
|
SC800 |
800 |
900 |
1050 |
30 |
6 x Ø40 |
M30 |
|
SC1000 |
1000 |
1100 |
1300 |
35 |
6 x Ø47 |
M36 |
|
SC1150 |
1150 |
1300 |
1500 |
40 |
6 x Ø50 |
M42 |
|
SC1250 |
1250 |
1450 |
1650 |
40 |
6 x Ø53 |
M42 |
|
SC1450 |
1450 |
1650 |
1850 |
45 |
6 x Ø61 |
M48 |
|
SC1600 |
1600 |
1800 |
2000 |
45 |
8 x Ø61 |
M48 |
|
SC1700 |
1700 |
1900 |
2100 |
50 |
8 x Ø66 |
M56 |
|
SC2000 |
2000 |
2000 |
2200 |
50 |
8 x Ø74 |
M64 |
|
SC2250 |
2250 |
2300 |
2550 |
60 |
10 x Ø74 |
M64 |
|
SC2500 |
2500 |
2700 |
2950 |
70 |
10 x Ø74 |
M64 |
|
SC3000 |
3000 |
3150 |
3350 |
75 |
12 x Ø90 |
M76 |
| All dimensions in mm. |
|
