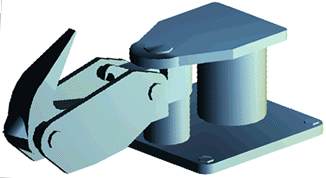

Z1 Single Quick Release Hook System

¡¡

Modular Hook Design, Counter Balanced, 30T-200T SWL Per Hook

Hook Elevates in Vertical plane to Accommodate Mooring Line with up to 60 Degree Inclination

Manual Release / Safety Lock Standard on All Models

Local and / or Remote Release Control ( Electric / Hydraulic / Pneumatic ) Available

With or Without CA series  integrated capstan, custom designed for various EXD - IP working environments

Local and / or Central Load Monitoring / Alarm / Data Management Available

All Major Classification Society Certificates Available

  Z1 Series Fender Specifications

¡¡

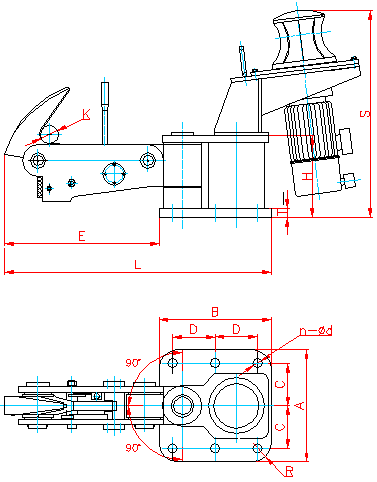

Z1 Series Dimension Table

SWLl
MBC
DIMENSIONS ( mm )
Anchor Bolts
Wgt.
(T)
(T)
A
B
C
D
T
H
E
L
K
n
d
R
S
( mm )
( Kgs )
45
60
500
500
190
190
40
360
690
1190
150
6
48
80
1350
6-M42
430
60
75
650
650
225
225
45
420
750
1350
150
6
62
100
1350
6-M56
500
75
90
650
650
225
225
50
460
750
1350
150
6
62
100
1350
6-M56
580
100
125
750
650
250
225
60
480
950
1650
150
6
70
100
1350
6-M64
900
125
150
750
650
250
225
60
520
950
1650
150
6
70
100
1350
6-M64
1100
150
180
750
650
250
225
60
530
1130
2010
150
6
82
100
1350
6-M76
1460
All dimensions in mm.
Capstan optional
SWL listed are per hook. Multiply by hook numbers to get combined SWL for multiple hook systems
MBC listed are Mounting Base Capacity
Weights listed excluding weight for anchor bolt sets and capstan
All weights and dimensions listed are subject to change without notice
