Z4 Quadruple Quick Release Hook System

　

Modular Hook Design, Counter Balanced, 30T-200T SWL Per Hook

Hook Elevates in Vertical plane to Accommodate Mooring Line with up to 60 Degree Inclination

Manual Release / Safety Lock Standard on All Models

Local and / or Remote Release Control ( Electric / Hydraulic / Pneumatic ) Available

With or Without CA series  integrated capstan, custom designed for various EXD - IP working environments

Local and / or Central Load Monitoring / Alarm / Data Management Available

All Major Classification Society Certificates Available

　

  Z4 Series Fender Specifications

　

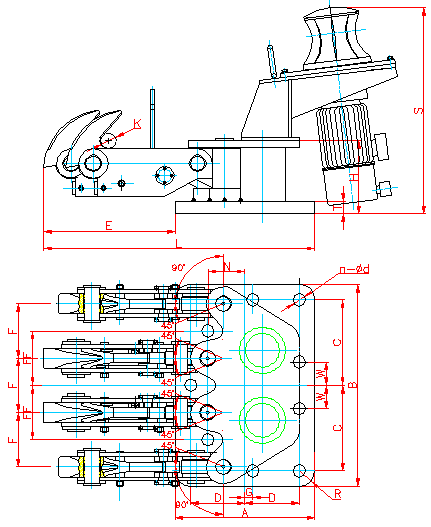

Z4 Series Dimension Table

SWL MBC DIMENSIONS (mm) Anchor Bolts 　Wgt.
( T ) ( T ) A B C D E F FF G H K L N R S T W n d (mm) ( Kgs )
45 180 700 1175 487 250 765 300 300 50 398 150 1465 205 100 1350 45 200 9 62 9-M56 1580
60 240 900 1300 550 350 850 350 350 50 460 150 1750 240 100 1350 50 200 9 70 9-M64 2400
75 300 900 1820 550 350 850 350 350 50 460 150 1750 240 100 1350 50 200 9 78 9-M72 2480
100 400 1100 1820 810 450 1040 450 450 50 480 150 2140 310 100 1350 60 200 9 82 9-M76 4590
125 500 1100 1820 810 450 1040 450 450 50 480 150 2140 310 100 1350 60 200 9 82 9-M76 4800
150 600 1100 1880 840 450 1100 480 480 50 530 150 2200 320 100 1350 60 320 9 86 9-M80 5610
All dimensions in mm.
Capstan optional
SWL listed are per hook. Multiply by hook numbers to get combined SWL for multiple hook systems
MBC listed are Mounting Base Capacity
Weights listed excluding weight for anchor bolt sets and capstan
All weights and dimensions listed are subject to change without notice
